RAID controller

MegaRAID SAS 9271-8i

Item No.: 150



Brand                                  LSI Logic

Eight-Port 6Gb/s PCI Express
Two Mini-SAS internal connectors (SFF8087)
LSISAS2208 Dual- core 6Gb/s ROC - x2 800MHz PowerPC Processors
PCI Express 3.0 Host Interface
1GB DDRIII cache memory
Publisher                             LSI Logic

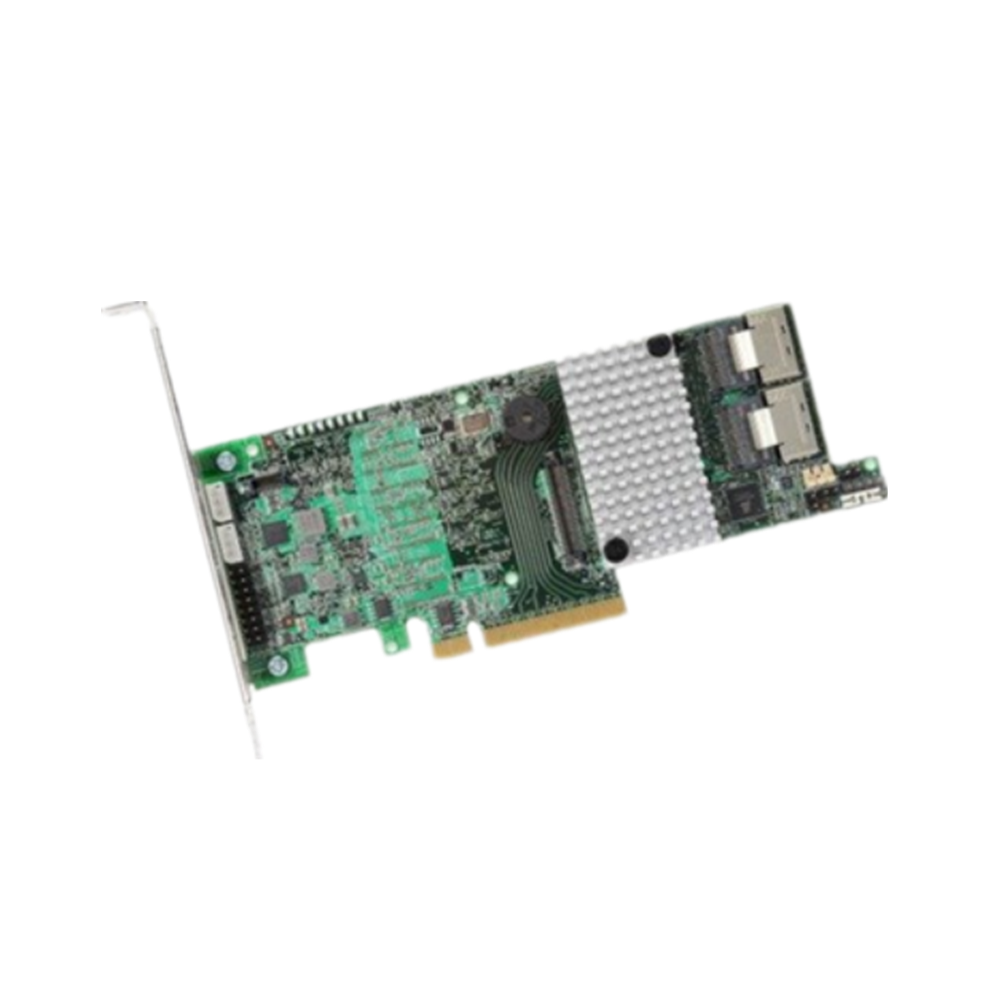

LSI LSI00330 MegaRAID SAS 9271-8i Eight-Port 6Gb/s PCI Express® 3.0 SATA+SAS RAID Controller
Unmatched RAID Performance for Next-Generation Servers and Storage
Today's data center cloud and high-performance computing environments not only require increased storage capacity to handle massive volumes of data but are also challenged to protect and deliver data as quickly as possible to meet the needs of applications and end users. To address these performance demands as capacity scales the newest 6Gb/s SAS RAID controllers from LSI offer a powerful combination of intelligent performance enterprise RAID data protection and proven interoperability with the latest server platforms based on the PCI Express 3.0 specification. The MegaRAID SAS 9271-8i with eight internal ports delivers two 800MHz PowerPC® processor cores and a 72-bit DDRIII interface that drives 1GB cache memory. Powered by the LSISAS2208 dual-core ROC the 9271-8i controller includes the latest PCI Express 3.0 and 6Gb/s SAS technology and helps users to maximize the performance benefits of solid state storage.
MegaRAID® SAS 9271-8i
Eight-port internal SAS solution for performance-hungry applications using up to 128 SAS SATA and solid state drives (SSDs)
MD2 Low profile (6.6" X 2.536")
Two Mini-SAS SFF8087 internal connectors (side mount)
UPC                                      014445249917
EAN                                      0012304346623
Package Dimensions            10.5 x 6.0 x 1.8 inches
